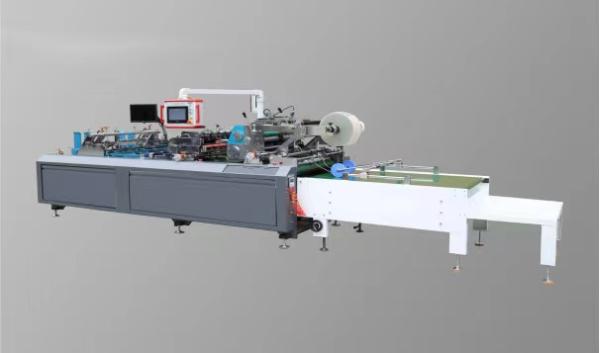

Multi function Automatic Window Patching Machine

1. Machine Install 7sets servo motor, high stability with more easy adjustment
2. Modular structure with free switching between hob cutting knife and horizontal knife.(Horizontal knife is optional function)
3. Through the PLC, input the paper size, automatically adjust the film length position.
4. Paper receiving stepper with batch counting
5. Air expansion shaft with magnetic powder tension film unwinding
6. Paper vacuum adsorption conveying
7. Double/empty paper convey problem, glue part can glue automatic rise.
8. High exactly to positioning the printed film for window patching.
9. The film can be embossed (need to customize pattern mold)
10. The film can be punched with round holes or special-shaped holes (Need to customize the mold)
11. To do the window pasting with creasing with V cutting.
12. Suitable for making tissue box(Standard)

1.It can position the window film of printing automatically. To get the high exactly position of printed film.
2. The film can be embossed(need to customize pattern mold, the model need to added the cost if choose this function)
3.The film can be punched with round holes or special-shaped holes(Need to customize the mold, the mould need to added the cost if choose this function)

Cake box General Box

Double creasing Three creasing (Optional)

Horizontal creasing Horizontal and Vertical creasing(Optional) Tissue box
